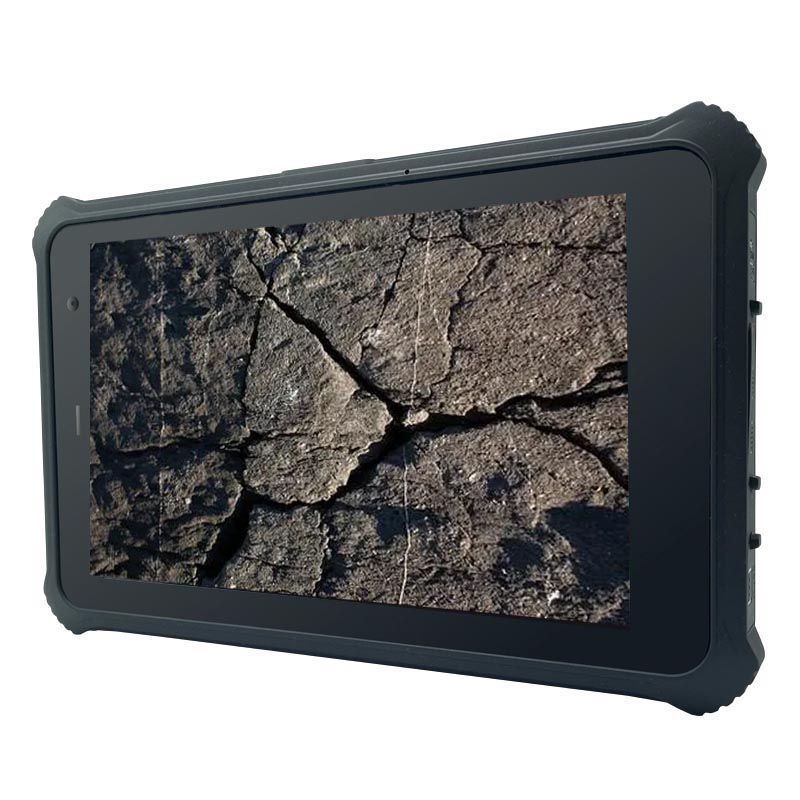

RSD-08M
Spec | Standard | Option | |
Physical Spec | Dimension | 227*142.4*22.9mm | |
Color | Black | Customize color | |
Platform Spec | CPU | MTK6771，Octa-core，2.0GHZ | |
RAM | 4GB | 2GB、6GB | |
ROM | 64GB | 32GB，128GB | |
OS | Android 10 with GMS | ||
Battery | 8500mAh，3.8v lithium- ion battery，Removable， endurance 8h（1080P Video + LCD 50% Brightness） | ||
Indicator | 1：the power ≤10%, the red light blinks. When the adapter is inserted, the red light is steady on for charging 2:10% power ≤90%, insert the adapter red light steady on charging 3: power > 90%, plug the adapter green light steady on charging | ||
Camera | Front Camera：5MP， | ||
Rear Camera：13MP with Auto Focus | |||
1A Flashlight | |||
2G/3G/4G | GSM: B2/B3/B5/B8 WCDMA: B1/B2/B5/B8 TD-SCDMA: B38/B39/B40/B41 CDMA2000 LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28A/ LTE-TDD: B38/B39/B40/B41 | ||
Location | GPS、Bei Dou，Galileo、GLONASS | Option U-BLOX M8N、 | |
WIFI | WIFI 802.11(a/b/g/n/ac) 2.4G+5.8G | ||
Bluetooth | Bluetooth 4.2 (BLE) class1 transmission range：10m | ||
Adapter | 5V/3A（DC Port） | 5V/3A（CONINVERS） | |
Display | Resolution | 800*1280，8 inch IPS LCD，16:10 | 800cd/㎡（1200*1920） |
Brightness | 450cd/㎡ | 1000cd/㎡（800*1280） | |
Touch panel | GT9110P,5 Points Touch/ Max 10Points Touch | Wet hand touch, glove touch Active/passive capacitor pen | |
Glass | Corning Gorilla third generation glass, hardness 7H | AG+AF Coating ， AR Coating | |
Key | Power | *1 | |
Volume | *2，Vol+，Vol- | ||
Self-define | *2，P-Key、F-Key | ||
Voice | Speaker | *2， 1.2W/8Ω， IP67 Water proofing； | |
Receiver | *1，IP67 Water proofing | ||
MIC | *1，MIC，IP67 Water proofing | ||
Port | USB1 | *1，Type-C USB2.0 Support OTG | |
USB2 | *1，Type-A USB2.0 | ||
Ethernet | *1，RJ45， 100Mbps | ||
DC | *1，DC 5V/3A, | ||
HDMI | *1，Mini HDMI | ||
Earphone | *1，3.5mm Standard earphone | ||
CONINVERS | *2， | RS232/USB/DC5V/CAN BUS | |
Pogo Pin | *1，,1pin USB+ Charging | ||
SIM Card | *1，Standard Micro SIM Slot | ||
TF Card | *1，Max Support 256GB | ||
Sensors | G-Sensor | OK | |
Gyro-Sensor | OK | ||
Compass | OK | ||
Light-Sensor | OK | ||
P-Sensor | OK |
Extension Module | NFC | 13.56MHZ Support:14443A/14443B/15693 | |
HF RFID | / | 13.56MHZ Support:14443A/14443B/15693 | |
UHF RFID | / | PR9200，Read distance：1.5M-3M: Read distance 2：5M-8M | |
ID | / | Standard 2th Generation | |
Fingerprint | / | 1: ordinary industrial fingerprint 2: Fingerprint authentication by the Ministry of Public Security 3: FBI certified fingerprint | |
1D Scanner | / | Zebra SE655 | |
2D Scanner | / | Zebra SE4710 | |
Reliability | IP Protection Level | IP67 | |
Drop test | 1.2M，Cement floor | ||
Working temperature | -20℃~60℃ | ||
Storage temperature | -30℃~70℃ | ||
Certification | CE | OK | |
RHOS2.0 | OK | ||
IEC62133 | OK | ||
Air and sea survey report | OK | ||
IP67 | OK | ||
GMS | OK | ||
MSDS | Ok | ||
UN38.3 | Ok | ||
Accessory | Hand strap | / | Option |
mounted bracket | / | Option | |
Standby Battery | / | Option | |
Docking | / | Option | |
Type-C Cable | / | Option | |
OTG Cable | / | Option | |
Spec | Standard | Option | |
Physical Spec | Dimension | 227*142.4*22.9mm | |
Color | Black | Customize color | |
Platform Spec | CPU | MTK6771，Octa-core，2.0GHZ | |
RAM | 4GB | 2GB、6GB | |
ROM | 64GB | 32GB，128GB | |
OS | Android 10 with GMS | ||
Battery | 8500mAh，3.8v lithium- ion battery，Removable， endurance 8h（1080P Video + LCD 50% Brightness） | ||
Indicator | 1：the power ≤10%, the red light blinks. When the adapter is inserted, the red light is steady on for charging 2:10% power ≤90%, insert the adapter red light steady on charging 3: power > 90%, plug the adapter green light steady on charging | ||
Camera | Front Camera：5MP， | ||
Rear Camera：13MP with Auto Focus | |||
1A Flashlight | |||
2G/3G/4G | GSM: B2/B3/B5/B8 WCDMA: B1/B2/B5/B8 TD-SCDMA: B38/B39/B40/B41 CDMA2000 LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28A/ LTE-TDD: B38/B39/B40/B41 | ||
Location | GPS、Bei Dou，Galileo、GLONASS | Option U-BLOX M8N、 | |
WIFI | WIFI 802.11(a/b/g/n/ac) 2.4G+5.8G | ||
Bluetooth | Bluetooth 4.2 (BLE) class1 transmission range：10m | ||
Adapter | 5V/3A（DC Port） | 5V/3A（CONINVERS） | |
Display | Resolution | 800*1280，8 inch IPS LCD，16:10 | 800cd/㎡（1200*1920） |
Brightness | 450cd/㎡ | 1000cd/㎡（800*1280） | |
Touch panel | GT9110P,5 Points Touch/ Max 10Points Touch | Wet hand touch, glove touch Active/passive capacitor pen | |
Glass | Corning Gorilla third generation glass, hardness 7H | AG+AF Coating ， AR Coating | |
Key | Power | *1 | |
Volume | *2，Vol+，Vol- | ||
Self-define | *2，P-Key、F-Key | ||
Voice | Speaker | *2， 1.2W/8Ω， IP67 Water proofing； | |
Receiver | *1，IP67 Water proofing | ||
MIC | *1，MIC，IP67 Water proofing | ||
Port | USB1 | *1，Type-C USB2.0 Support OTG | |
USB2 | *1，Type-A USB2.0 | ||
Ethernet | *1，RJ45， 100Mbps | ||
DC | *1，DC 5V/3A, | ||
HDMI | *1，Mini HDMI | ||
Earphone | *1，3.5mm Standard earphone | ||
CONINVERS | *2， | RS232/USB/DC5V/CAN BUS | |
Pogo Pin | *1，,1pin USB+ Charging | ||
SIM Card | *1，Standard Micro SIM Slot | ||
TF Card | *1，Max Support 256GB | ||
Sensors | G-Sensor | OK | |
Gyro-Sensor | OK | ||
Compass | OK | ||
Light-Sensor | OK | ||
P-Sensor | OK |
Extension Module | NFC | 13.56MHZ Support:14443A/14443B/15693 | |
HF RFID | / | 13.56MHZ Support:14443A/14443B/15693 | |
UHF RFID | / | PR9200，Read distance：1.5M-3M: Read distance 2：5M-8M | |
ID | / | Standard 2th Generation | |
Fingerprint | / | 1: ordinary industrial fingerprint 2: Fingerprint authentication by the Ministry of Public Security 3: FBI certified fingerprint | |
1D Scanner | / | Zebra SE655 | |
2D Scanner | / | Zebra SE4710 | |
Reliability | IP Protection Level | IP67 | |
Drop test | 1.2M，Cement floor | ||
Working temperature | -20℃~60℃ | ||
Storage temperature | -30℃~70℃ | ||
Certification | CE | OK | |
RHOS2.0 | OK | ||
IEC62133 | OK | ||
Air and sea survey report | OK | ||
IP67 | OK | ||
GMS | OK | ||
MSDS | Ok | ||
UN38.3 | Ok | ||
Accessory | Hand strap | / | Option |
mounted bracket | / | Option | |
Standby Battery | / | Option | |
Docking | / | Option | |
Type-C Cable | / | Option | |
OTG Cable | / | Option | |
