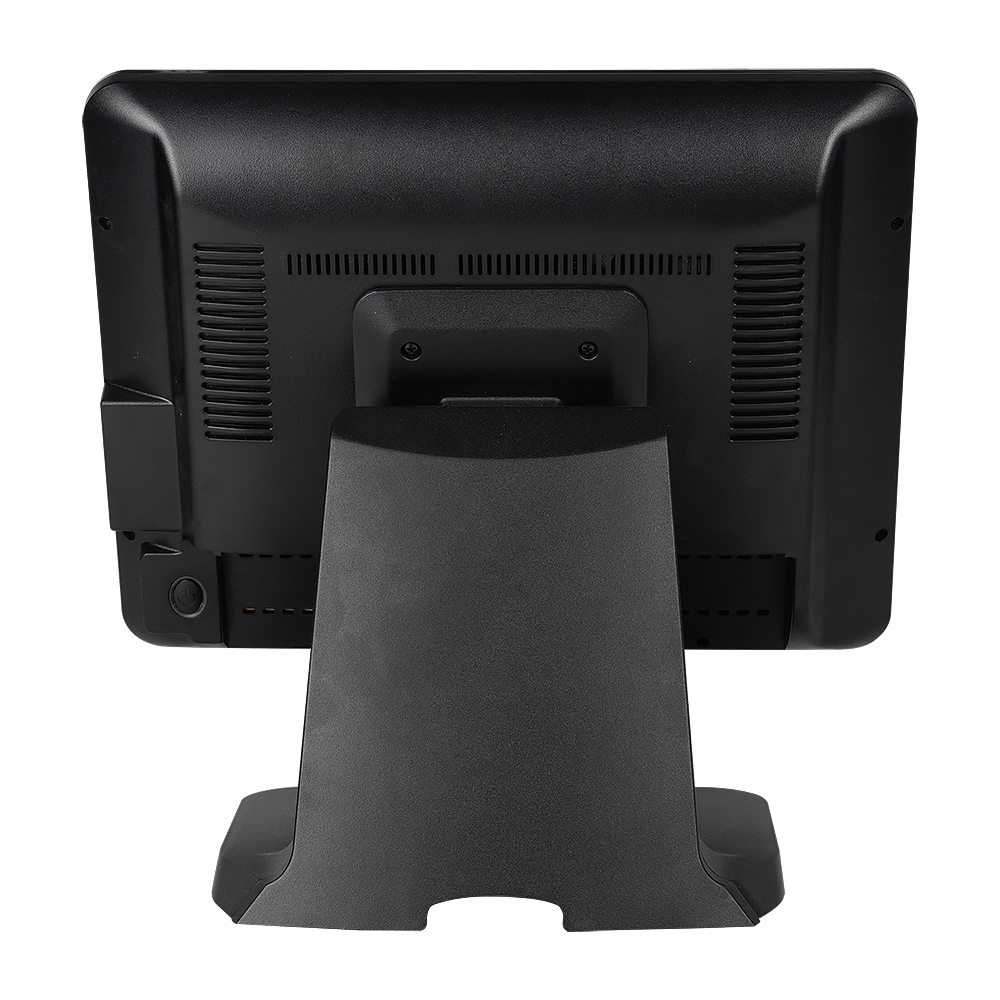

15" Classical Capacitive Touch POS Terminal PC

.............................................................................................
Model : T660              Brand : RISENDA

HS Code : 8470501000

Material : Plastic case + Metal base

1. Industrial Grade A LCD Display (LED Backlight) ,
2. Industrial Motherboard (J6412,i3,i5,i7)
3. Brand RAM /Hard Disk
4. Stable Power Supply DC12V 5V Passed global UL certificate
5. Flat free-bezel 10 Point Capacitive Touchsreen
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • T660


WindowsAndroid
CPUIntel® Celeron® Processor J6412 1.5M Cache, up to 2.60 GHz

RK3568 Cortex-A55 dual-core

,up to 2.0GHz

Intel® Celeron® Processor 5205U (2M Cache, 1.90 GHz)
Intel® Celeron® Processor J4125
4M Cache, up to 2.70 GHz
Intel® Core™ i3 Dual Core ( 3th,4th.5th.6th.7th.8th.10th,11th Gen)
Intel® Core™ i5 Dual Core ( 4th.5th.6th.7th.8th.10th,11th Gen)
Intel® Core™ i7 Dual Core ( 5th.6th.7th.8th.10th,11th Gen)
MemoryDDR3 (2GB,4GB,8GB), DDR4(4GB,8GB,16GB)DDR4 2GB,4GB,8GB
Hard Disk32GB,64GB,128GB,256GB,512GBEMMC 8GB,16GB
Ethernet100M/1000M Self-adaptionWiFi IEEE 802.11 b/g/n                                                                                            10/100/1000M Adaptive Ethernet RJ45 connector+4-Pin POE header
MiniPCI-E
OSWindows 10 /11Android 11.0
Display15" Industrial Grade A LED (4:3)
Resolution1024 x 768 Pixels
Brightness300 CD/㎡
Touch ScreenBezel-free 10-Ponits Capacitive Touchscreen
Housing MaterialPlastic case & Metal base
I/O PortsUSB x 6 ; RJ45 x 1 ; COM x 1:COM(RJ45) x2 ; VGA  1 ; Audio x 1; DC x 1 ; on-off Switch x 1
Power Supply100-260V  AC ( 50-60Hz) 12V 5A
PackingSingle Box with Inner Foam/ 2 box per Carton (58mm*46mm*46mm)
CertificationCE/FCC/ROHS /CCC/ UL
OptionalCustomer DisplayVFD / 9.7"/ 12.1"
Built inWifi & BT
ReaderMSR / RFID
Way to installPlastic / Aluminium Alloy Stand (Metal Base) x 2  (Optional) /VESA 75*75


Application Area  :


Supermark , Shopping Mall , Retail Store ,School , Hopstial, Restaurant ,Cafe bar , Warehouse etc .

Panel Type15"TFT LED Panel （Industrial Grade A )
Aspect Ratio :4: 3
Resolution :1024 (RGB) x 768 (XGA) Pixels
Display Area :304.128 x 228.096 mm(H/V)
Pixel Pitch0.297 x 0.297 mm
Colors :16.2M
Brightness(nits)300CD/m2
Contast Ratio800 :  1
Response :30ms
Viewing Angle :80°/80°/65°/80° (L/R/U/D)
Backlight :LED
Touchscreen :Capacitive Optional
Signal Inface :VGA / HDMI Optional
Colors System :PAL/NTSC/SECAM
Power Input :AC 110V-240V  60Hz / DC 12V  2.5A
Power Consumption :≤35W
Lifttime :50000 hours
Operating Temperature:0 ℃-70℃
Storage Temperature :-30℃-80℃
Mounting Method :Plastic / Aluminium Alloy Stand (Metal Base) x 2  (Optional) /VESA 75*75
Accessories :VGA Cable/USB/ DC Adaptor /Power Cable
